SmartLine Pinewood Derby® Timer
|
|
Single Sided Display |
Double Sided Display |
Single Sided Time/Place Display |
Double Sided Time/Place Display* |
Complete Finish Line for 1 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
------- |
------- |
$284.00 |
------- |
2 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$229.00** |
$329.00 |
$339.00 |
$379.00 |
3 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$319.00 |
$379.00 |
$394.00 |
$454.00 |
4 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$349.00 |
$429.00 |
$449.00 |
$529.00 |
5 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$385.00 |
$485.00 |
$510.00 |
$610.00 |
6 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$415.00 |
$535.00 |
$565.00 |
$685.00 |
7 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$445.00 |
$585.00 |
$620.00 |
$760.00 |
8 lane track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
$475.00 |
$635.00 |
$675.00 |
$835.00 |
|
Complete Pinewood Derby® Finish Line Timer Includes:
-
Timer computer unit housed in sturdy aluminum frame with all commands and features enabled
-
Displays (Single Sided Displays, Double Sided Displays, Time/Place Displays
-
IR LED (light) and detection sensor for each lane placed on frame. (We need the dimensions to the center of each lane for custom tracks to place these.)
-
Hardware for one of the mounting methods listed in chart below.
-
Panel for displays trimmed with black rubber edging
-
A/C Power Adapter
-
10 foot RS-232 (serial) cable***
-
50 foot start gate/reset switch cable with a connection harness that remains on the track
************ Starred item descriptions ************
*The time display is on one side with placement on both sides on the Double Sided Time/Place Display.
**Special price held low for small groups.
***Options you may want to include in your order if you use a computer are USB to Serial converter and a Serial extension cable.
|
|
SmartLine Complete Space Derby® Timer
|
|
Complete SmartLine Space Derby® Finish Line Timer includes:
-
Timer unit with all commands and features enabled
-
4 Space Derby® sensors
-
4 Displays
-
A/C power adapter
-
10 foot serial cable
-
50 foot Start Gate/Reset switch cable with a connection harness that remains on the track
Click on this link to view Space Derby® Finish Line
(Frame in picture not supplied)
|
Single Sided Display
|
Double Sided Display
|
Single Sided Time/Place Display
|
Double Sided Time/Place Display
|
|
$349.00
|
$429.00
|
$449.00
|
$529.00
|
|
SmartLine Storage Cases for your Timer
|
|
Small cases (Regular or Locking) for 4 lane and under. Large case for 6 lane timers. No case is availble for the 8 lane timer.
Click on this link to view Storage Cases and Specifications.
|
Small Case
|
Small Keylock Case
|
Large Case
|
|
$69.00
|
$79.00
|
$89.00
|
|
Additions to retrofit your timer for another track
|
|
Pinewood Sensor Retrofit
|
4 Lane Sensor Retrofit only sold if you have purchased a Complete Space Derby® Timer.
Pinewood from Space Derby® conversion kit contains:
Plexiglas panel & horizontal bar (cut to mounting spec), 4 LEDs, 4 Sensors and non-functional leg of timer.
You must have previously purchased a SmartLine Complete Space Derby® timer since
this kit does not include the timer's computer, reset/start cable, displays,
serial cable or AC power adapter.
4 lane units or less only.
|
$99.00
|
|
Space Sensor Retrofit
|
Sensor Retrofit only sold if you have purchased a Complete Pinewood Derby® Timer.
Space from Pinewood Derby® sensor conversion kit contains:
IR LED/sensor as shown in picture (4 lanes supplied in kit), 4 tabs for carriers, cap for computer leg, 8 velcro
strips for displays and one velcro strip pair and L-bracket with screws to secure
computer tube to the track.
Add one set (4 in set) of these Space Derby® sensors and use it with the
displays, computer in side leg of timer, A/C power adapter, serial
reset/start switch from your SmartLine Pinewood Derby®
Finish Line Timer to create the Space Derby® Finish Line Timer.
It will not work with any other timer.
(Must have previously purchased a complete SmartLine
Pinewood Derby® Finish Line Timer of any size above to purchase this conversion kit.)
|
$99.00
|
|
SmartLine Space Derby® Carrier Product
|
|
Includes:
4 carriers assembled with tabs, roll of track line and a swivel clip.
This is a service we provide for the Space Derby®. We will assemble the carriers and add the necessary tabs for you.
|
$23.00
|
|
SmartLine Customization Services available by invoice only
|
|
Custom setups are available including additional displays for Space option and LED or sensor wire lengths. If you have a specific request, email a description and we will do our best to accomodate you.
|
Contact us through email for a quotation.
|
|
Additional Cables
|
|
SmartLine Serial Cable
|
|
25 Foot Serial Extension Cable.
50 Foot Serial Extension Cable.
|
$19.00
$29.00
|
|
 The SmartLine Finish
Line Timer includes a 10 foot serial data output cable for
transferring the race times to a computer.
This 25 or 50 Foot Serial Cable allows you to put your computer closer to the top of the track.
|
|
SmartLine USB to Serial Converter
|
|
USB to Serial Converter. (Serial connection is on timer.)
|
$29.00
|
|
The SmartLine Timer includes a serial data output for transferring the race times to a computer.
This USB to Serial Converter allows you to use a USB connection on your computer to receive the race times instead of a serial COM port connection.
We recommend that you use a 50' Serial Cable and the USB converter so you have the freedom to place your computer anywhere.
We use the short converter with a serial cable because of the limitations on the length of USB cables.
The signal degrades over a USB cable so the length is limited to 16' max.
|
|

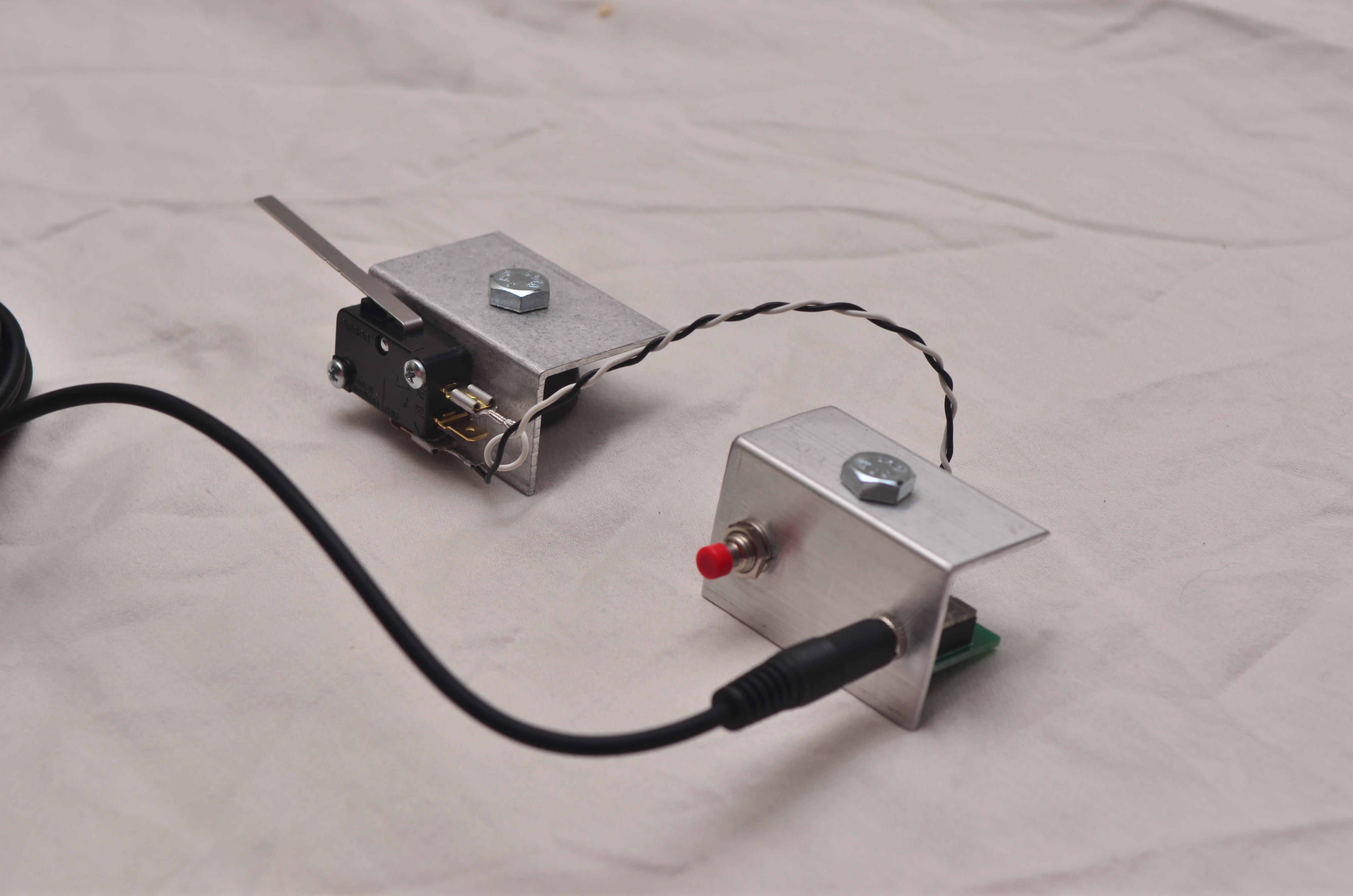

Start Gate Switch and Reset Switch Cable
|
|

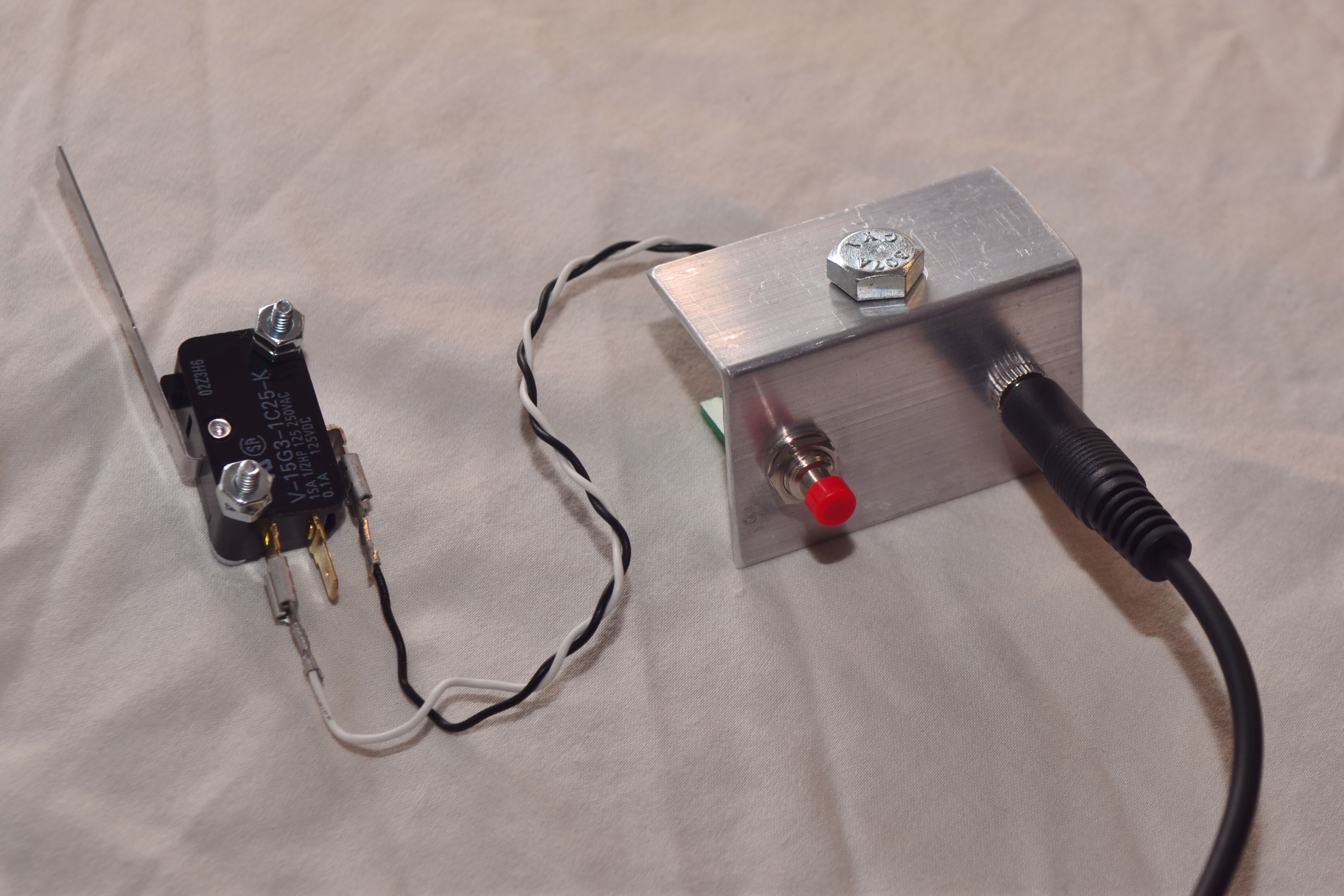

New design! 50' Cable and Reset/Start Gate Harness assembly that remains on track. Includes Start switch and Reset button.
This is a replacement only. New timers include this design.

|
$39.00
|
|
Extra Reset/Start Gate Harness assembly that remains on track. If you need another assembly for your Space track order this.
|
$25.00
|
|

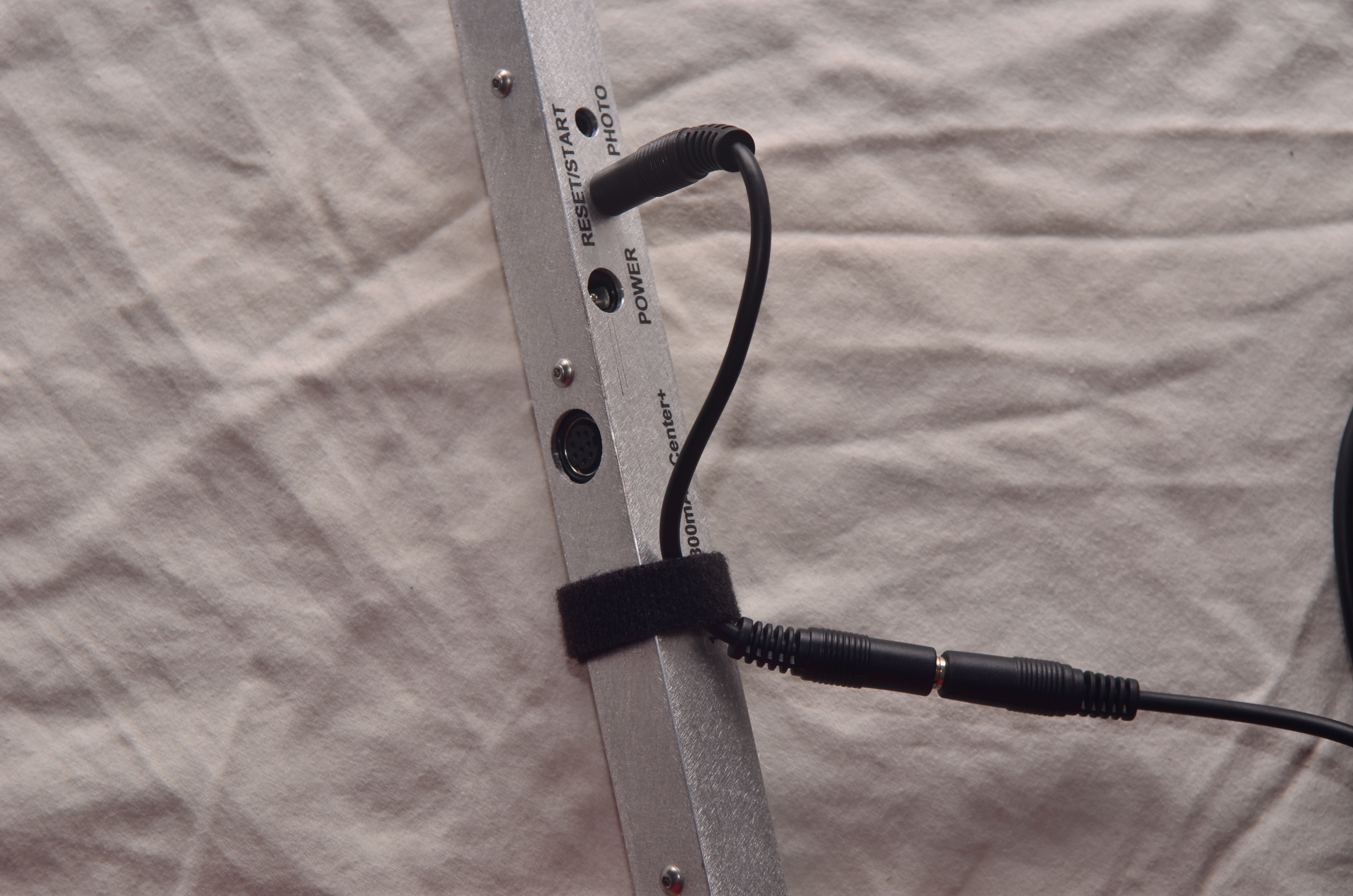

Extra Reset/Start Gate Cable to be used with harness assembly that remains on track. This cable has 2 male stereo plug connectors.
|
$14.00
|
|
"HIGHBOY" Extension Cable
|
|
"HIGHBOY" extension cable with plans - See the link to the HIGHBOY page for complete details
|
$19.00
|
|
|
Additional Hardware and Software products
|
|
SmartLine Photo Finish
|
|
Photo Finish USB Video Capture Device and StillCap Software. Windows Vista or older.
|
$99.00
|
|
The Photo Finish USB video capture device must be connected to your camera and the trigger output of the Finish
Line Timer. The Finish Line trigger acts as a switch to activate the video capture.
The picture is then transferred to a computer where it may be displayed using our display software that is
included.
See diagrams on the photo finish page.
System requirements: Windows Vista or older.
|
|
Race Management Software
|
|
GrandPrix Race Management (Current Version)
|
$60.00
|
|
 The SmartLine Finish
Line Timer provides the race times to the GrandPrix Race Management software.
This program allows you to easily manage the race and view the results on a computer screen that may be projected onto a wall for the spectators.
|
|
Order on one of our Secure
Order Forms.
Use our printable order form as a worksheet.
Submit it only when you are ready to order if paying by check or for faster service use the PayPal order form.
|
|
|
